Linear Module

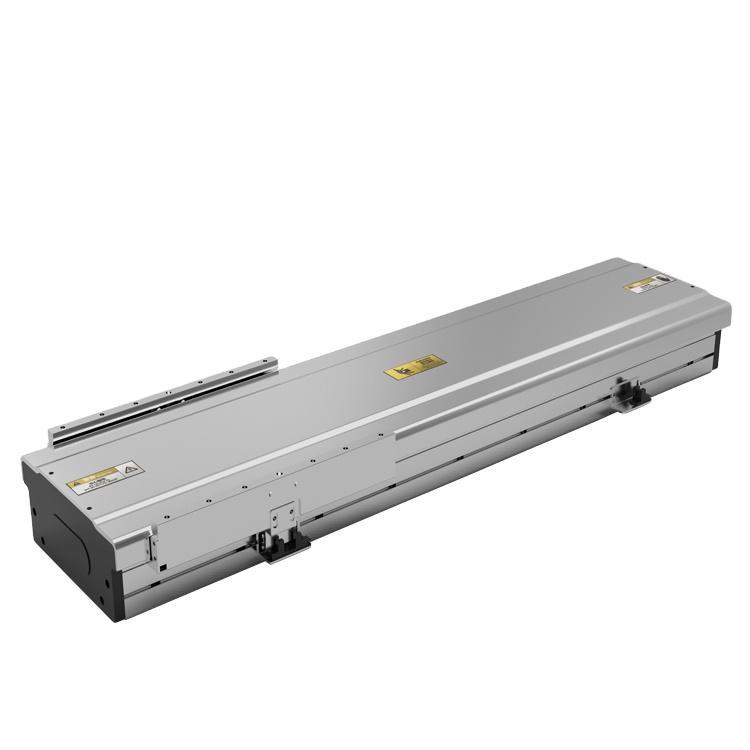

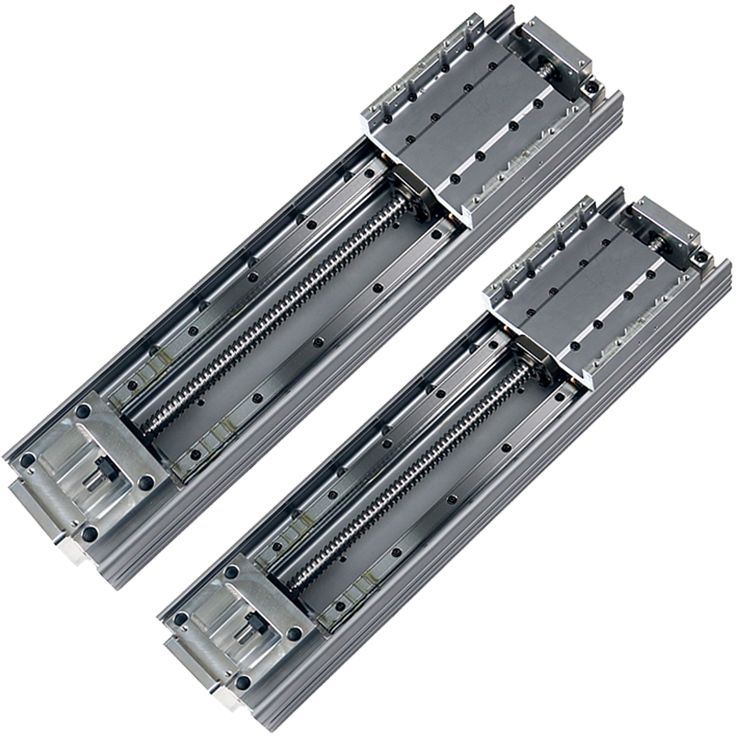

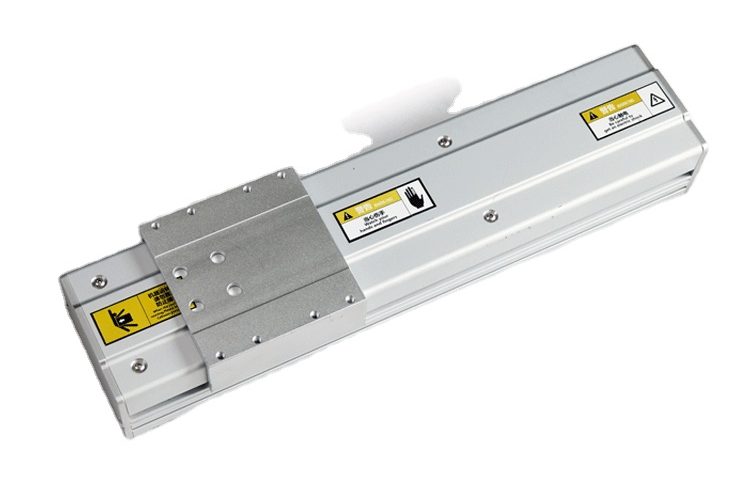

Full Closed Ball Screw Linear Module

1.Body width:RY60FB,RY100FBS,RY140FB,RY170FB

2.Maximum Stroke:800-1700mm

3.Maximum Speed:1000-2500mm/s

4.Maximum Lead:5mm,10mm,20mm,25mm,40mm,50mm.

5.Repeat Positioning Accuracy:±0.01mm

Category

1.PRODUCT CHARACTERISTICS

  • Simple structure, easy to maintain, a single horizontal maximum load of 150 kg, no splicing the longest 5.5 meters of travel, easy installation and maintenance, low cost, widely used.
  • Patented structure, labyrinth dust-proof structure, simple and reliable, horizontal installation can prevent debris, widely used in welding laser cutting equipment.

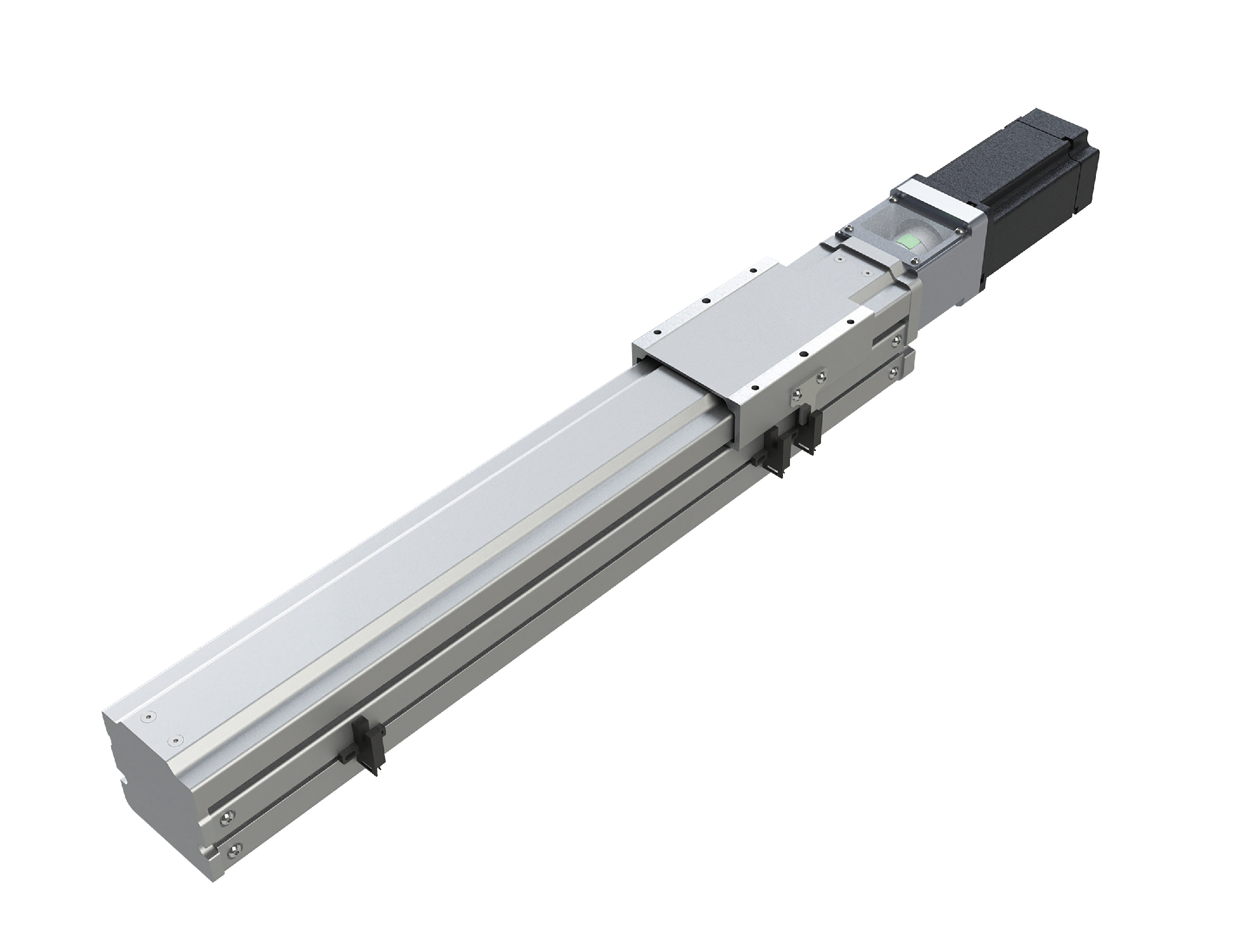

2.MOTOR MOUNTING MODE

  • Direct Connection
  • Underfold
  • Left Fold
  • Right Fold

3.MOTOR CAPACITY

100W,200W,400W,750W,1000W.
