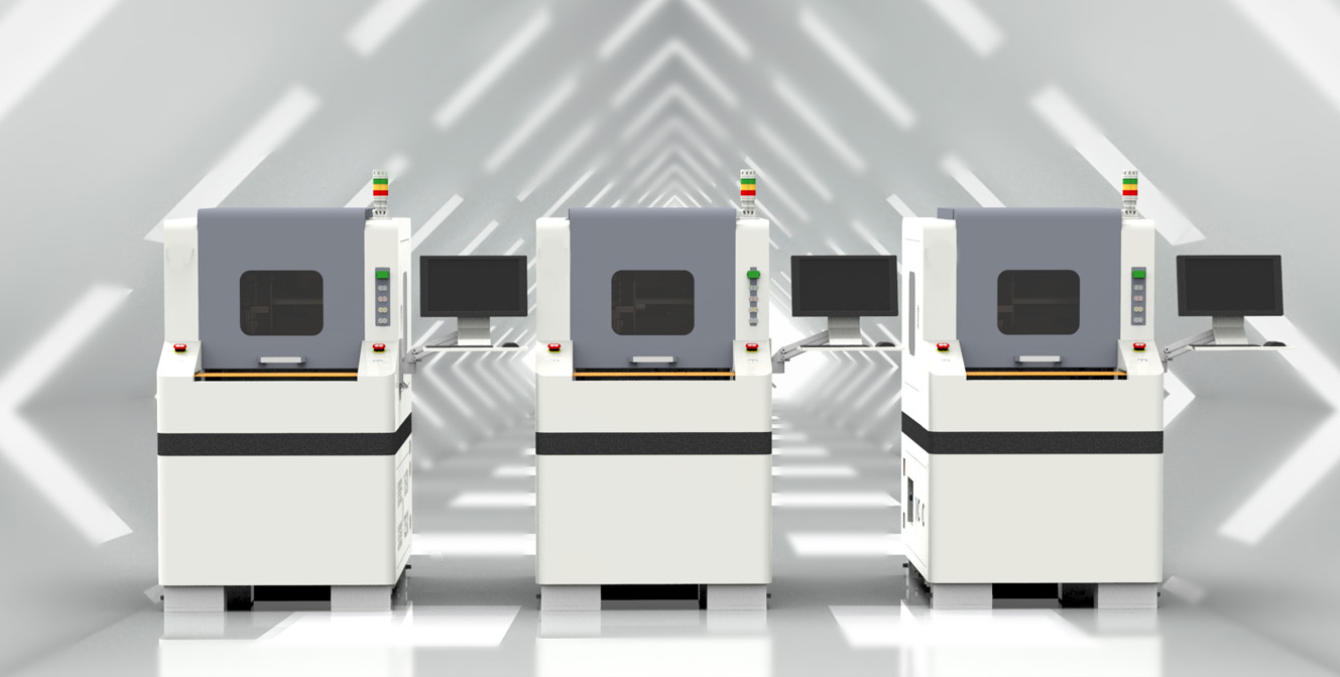

Solder Ball Jetting Workstation
Application Scenarios
The entire machine assembly is constructed from a combination of marble and sheet metal tubing,
ensuring minimal vibration and exceptional stability during high-speed welding operations.
It employs a dual-station working mode to maximize the utilization of the solder ball jetting heads,
thereby significantly boosting welding efficiency.
The welding section is equipped with linear motors integrated with a feeding and grinding module,
enabling smooth start-and-stop motions over short distances
and rapid response across longer spans. This configuration delivers high-standard repetitive positioning accuracy,
thereby guaranteeing consistent and stable product welding quality.
Advanced solder ball jetting technology enables the precision soldering of intricate electronic components.
With a maximum jetting speed of up to 3 balls per second, this system effectively overcomes the inherent drawbacks—such
as low precision and inefficiency—associated with traditional soldering irons and wire-based methods.
Furthermore, the equipment features user-friendly operation,
substantially boosting customer production capacity and fostering a win-win scenario
characterized by high efficiency and high returns.
Recommended Models
Semi-Enclosed Ball Screw Modules
Semi-Enclosed Belt-Driven Modules
Dongguan Jiayi Intelligent Equipment Co., Ltd. was established in April 2009.
It is a comprehensive enterprise integrating R&D, manufacturing, and application services. In 2019,
the company obtained ISO 9001 Quality Management System certification.
The facility covers an area of 10,000 square meters and employs a workforce of over 120 individuals,
including a senior R&D and design team comprising more than 20 specialists.
The company is equipped with advanced precision inspection instruments—including equipment from API (USA)—and has
established long-term strategic partnerships with numerous universities and scientific research institutions.
We remain committed to introducing and assimilating advanced automation technologies from Germany and Japan to
continuously enhance the sophistication of our manufacturing processes.
We specialize in the R&D and production of linear modules, linear motors, DD motors, variable-pitch modules, electric slides,
multi-axis precision platforms, custom platform systems, and module components (such as ball screws and linear guides).
Additionally, we provide design, fabrication, and manufacturing services for custom non-standard automation equipment,
as well as modification and upgrade engineering for industrial automation production lines.
Our products currently serve a wide range of automation sectors, including lithium-ion batteries, photovoltaics,
energy storage systems, semiconductor manufacturing equipment, 3C electronics, solar energy systems,
medical devices, and automotive electronics.
