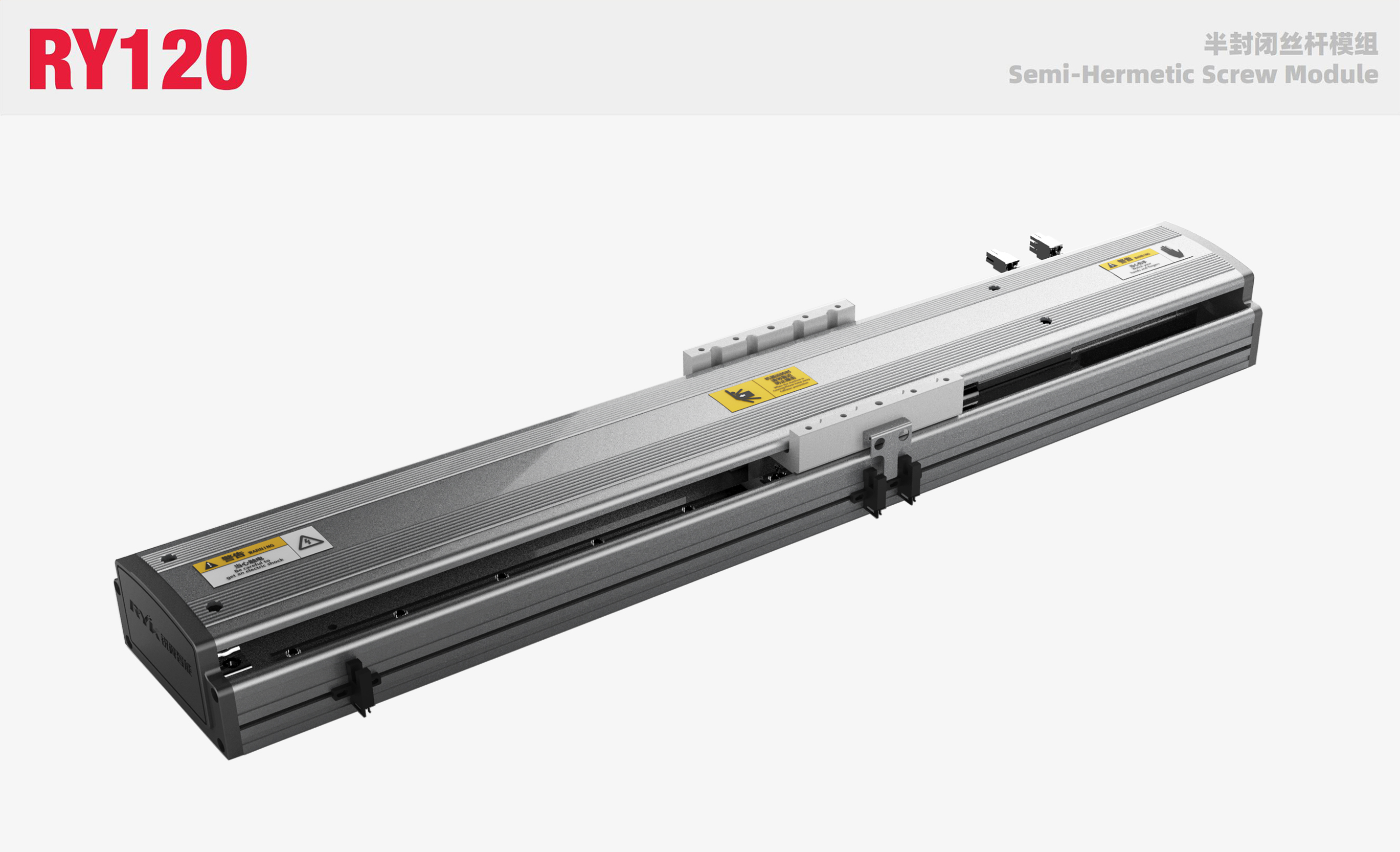

RY120 Semi-Sealed Ball Screw Module

Jiayi Intelligent Equipment Co., Ltd. is a national high-tech enterprise specializing in the research, development, production, and sales of linear modules, linear guides, circular linear modules, industrial robots, etc. Welcome to contact Deng Sheng at 18822958970 for consultation

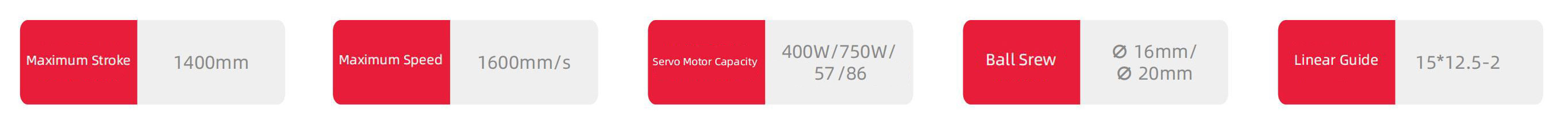

Product Parameters

The RY120 semi closed screw module has the following advantages:

1. The core components are imported from Taiwan, including screw rods and guide rails.

2. The body adopts a new type of aviation aluminum material, which has higher rigidity and lighter weight.

3. High stability, high reliability, with an accuracy of up to 0.02mm.

4. Smooth operation, no wear and tear, minimal maintenance, long service life.

5. Compact size, space saving, easy to build.

6. The requirements for the motor are not high, and it can adapt to mainstream motors on the market.

Engineering one-on-one tailored selection, helping you save time and make products more superior.


Param Selection

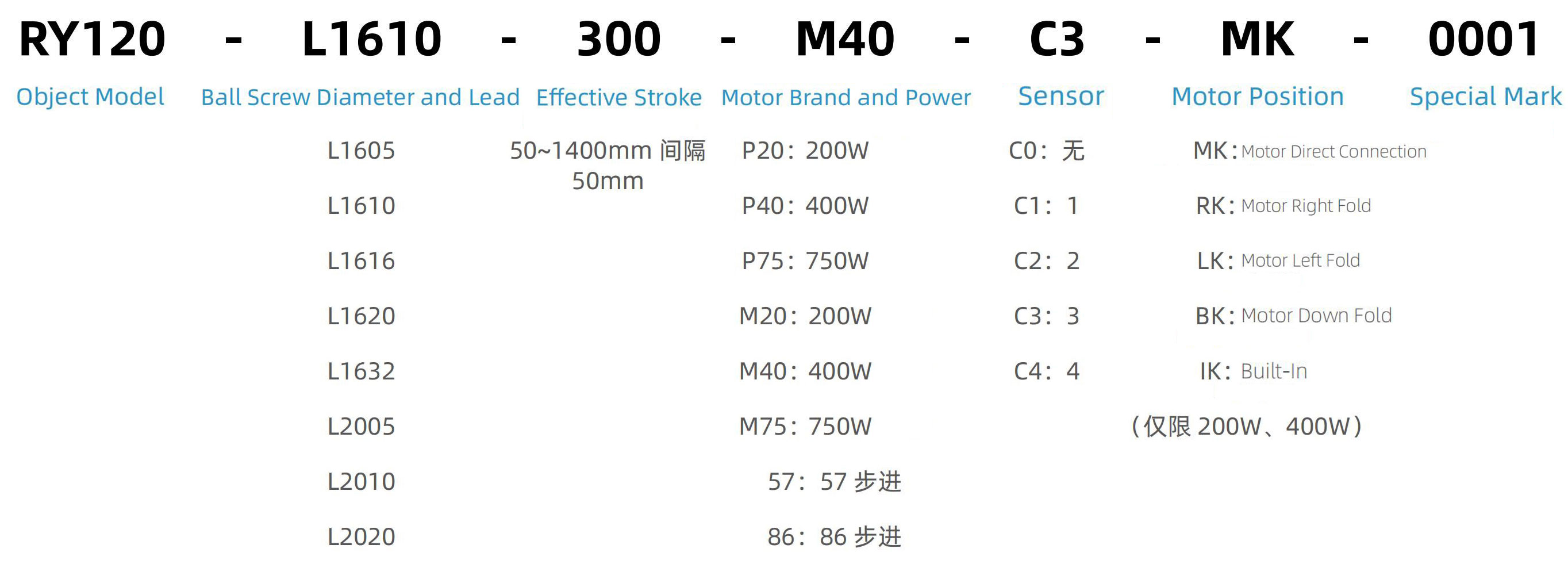

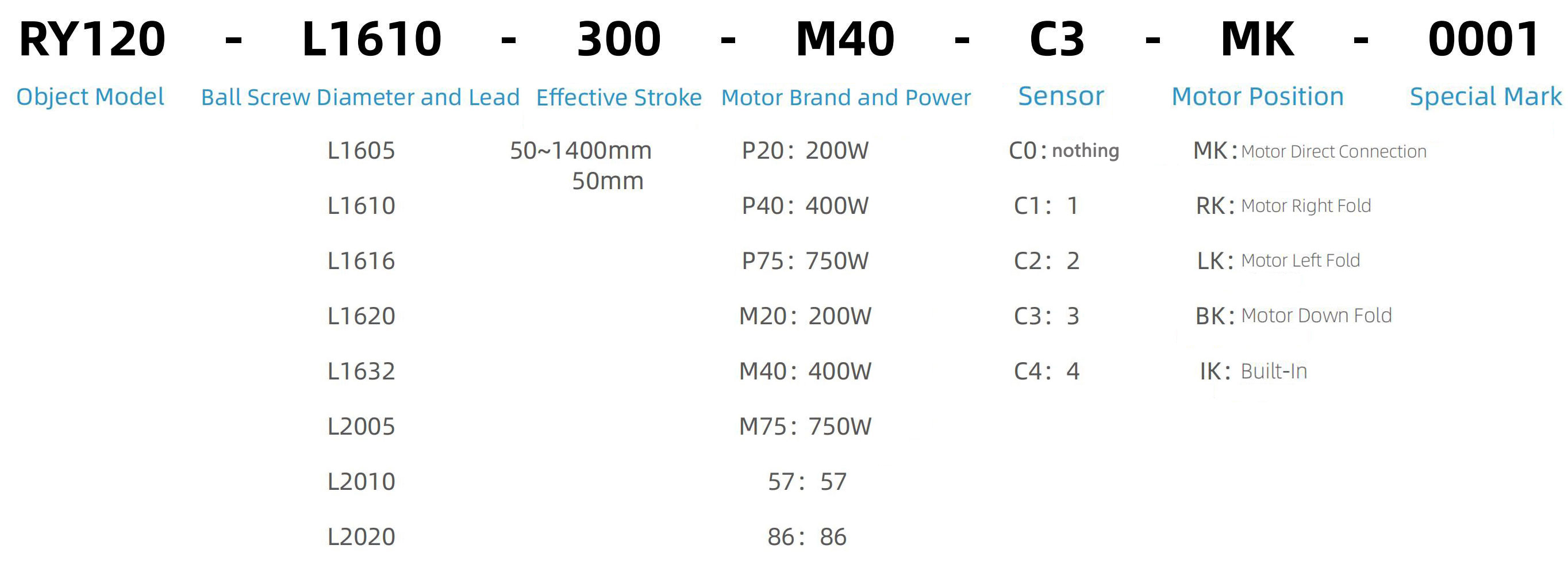

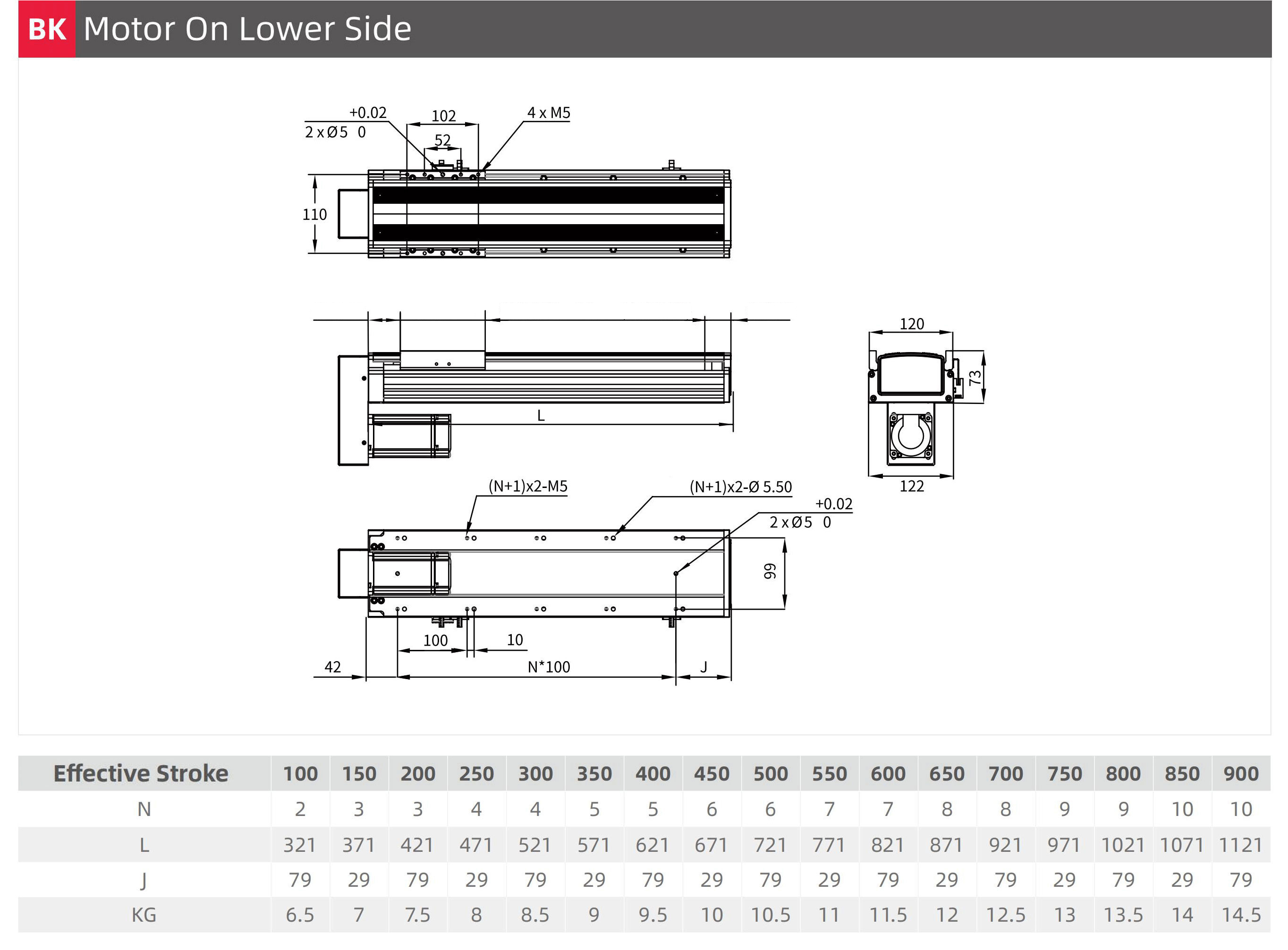

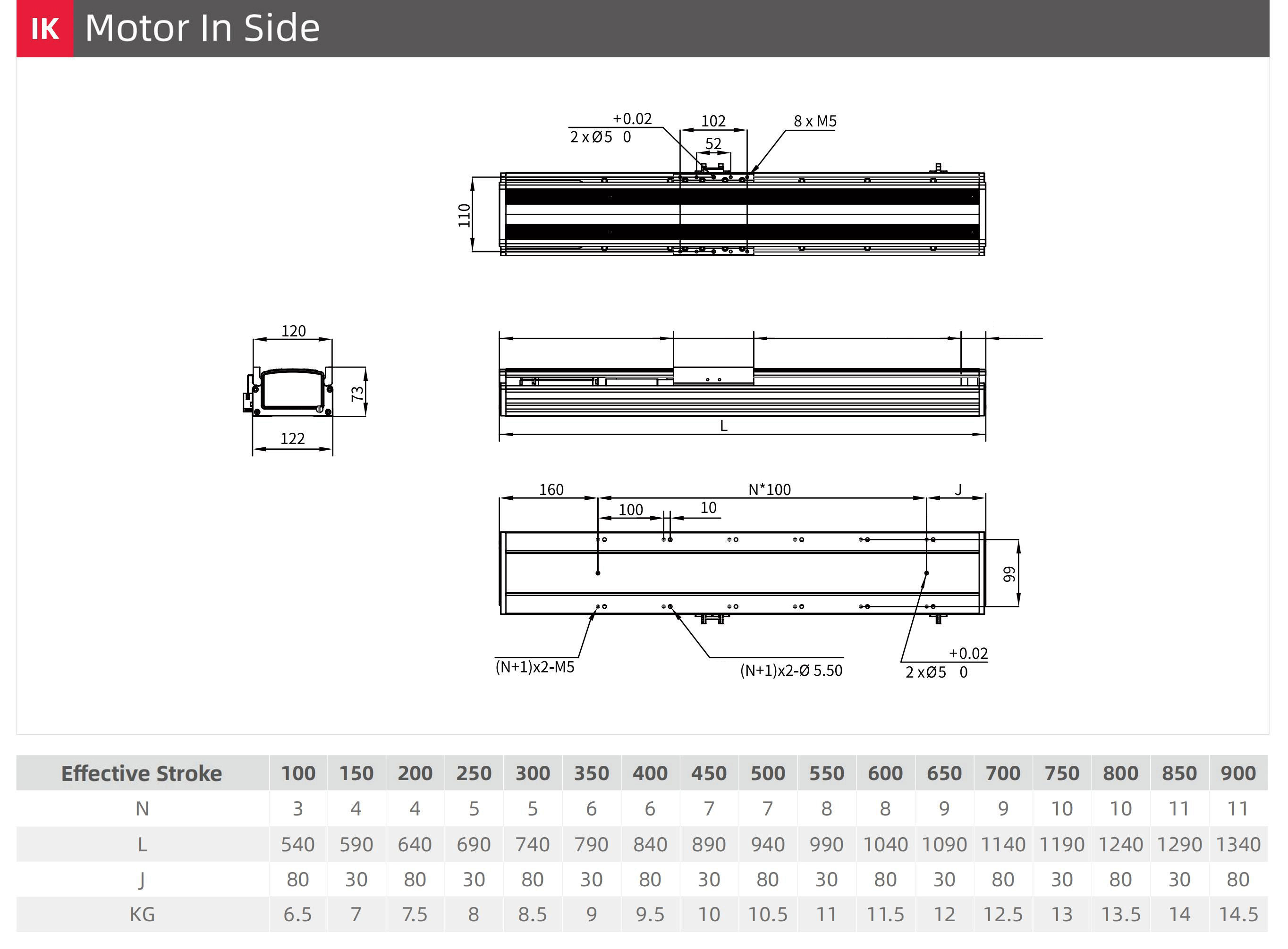

Model Representation Method

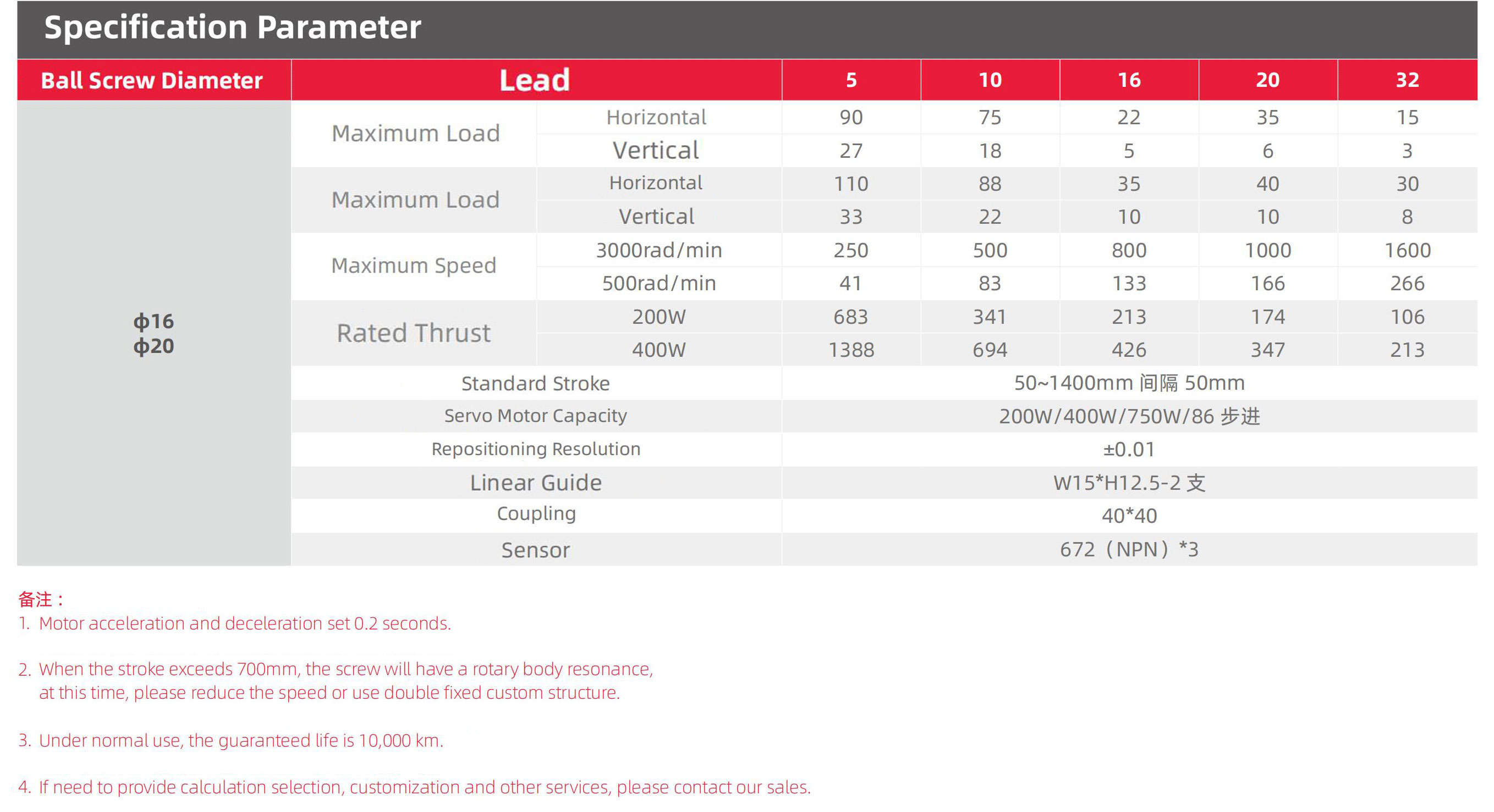

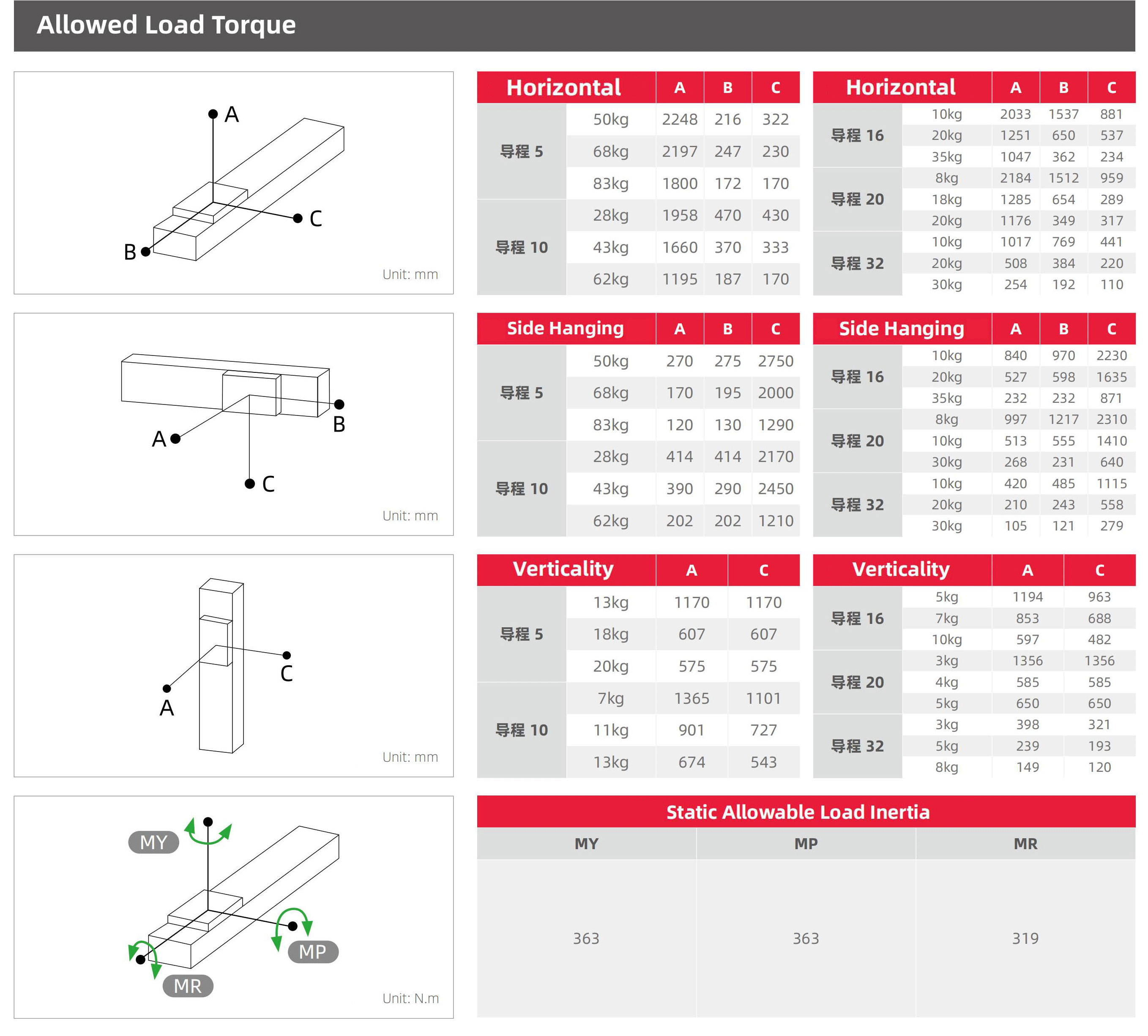

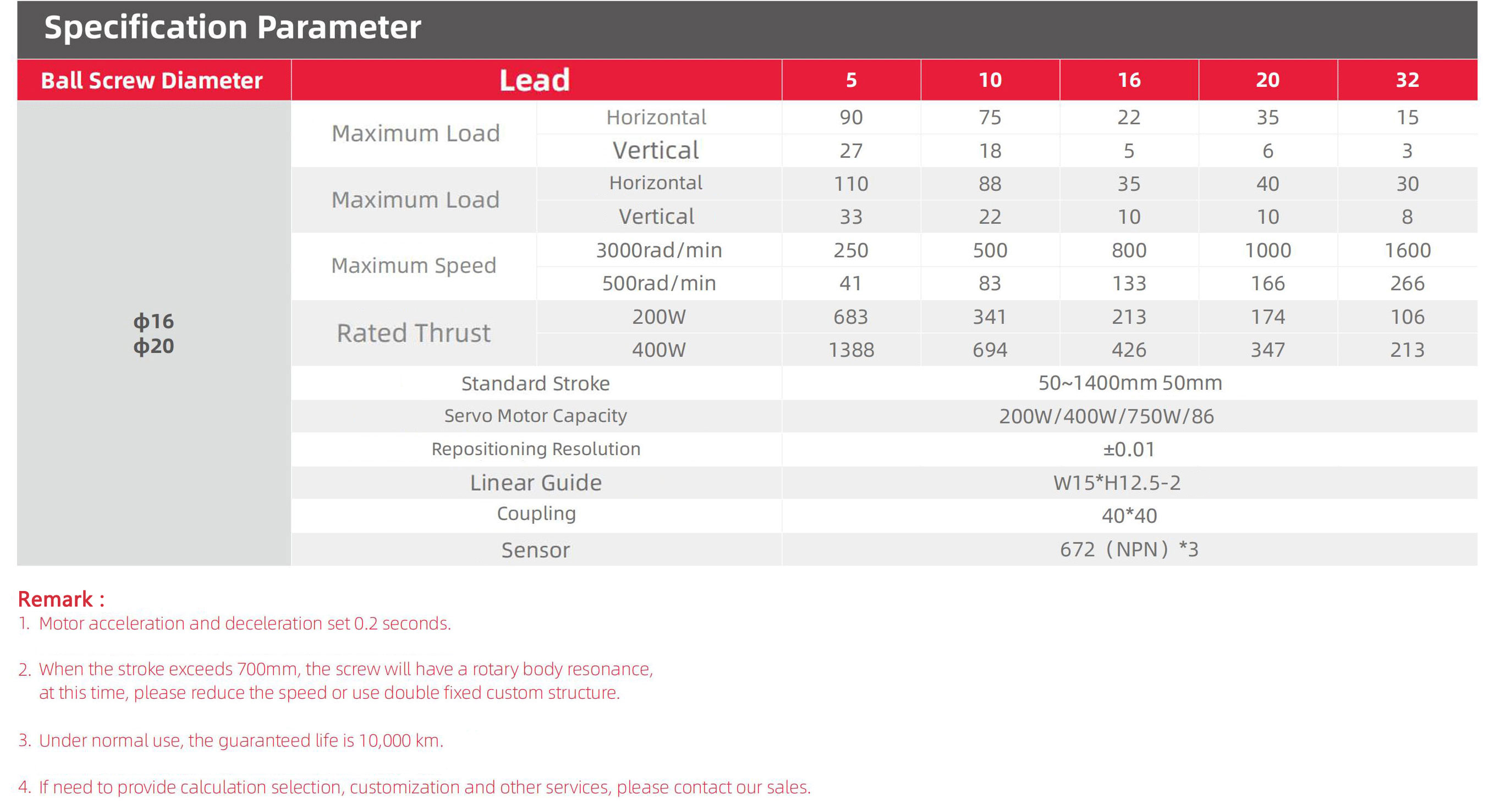

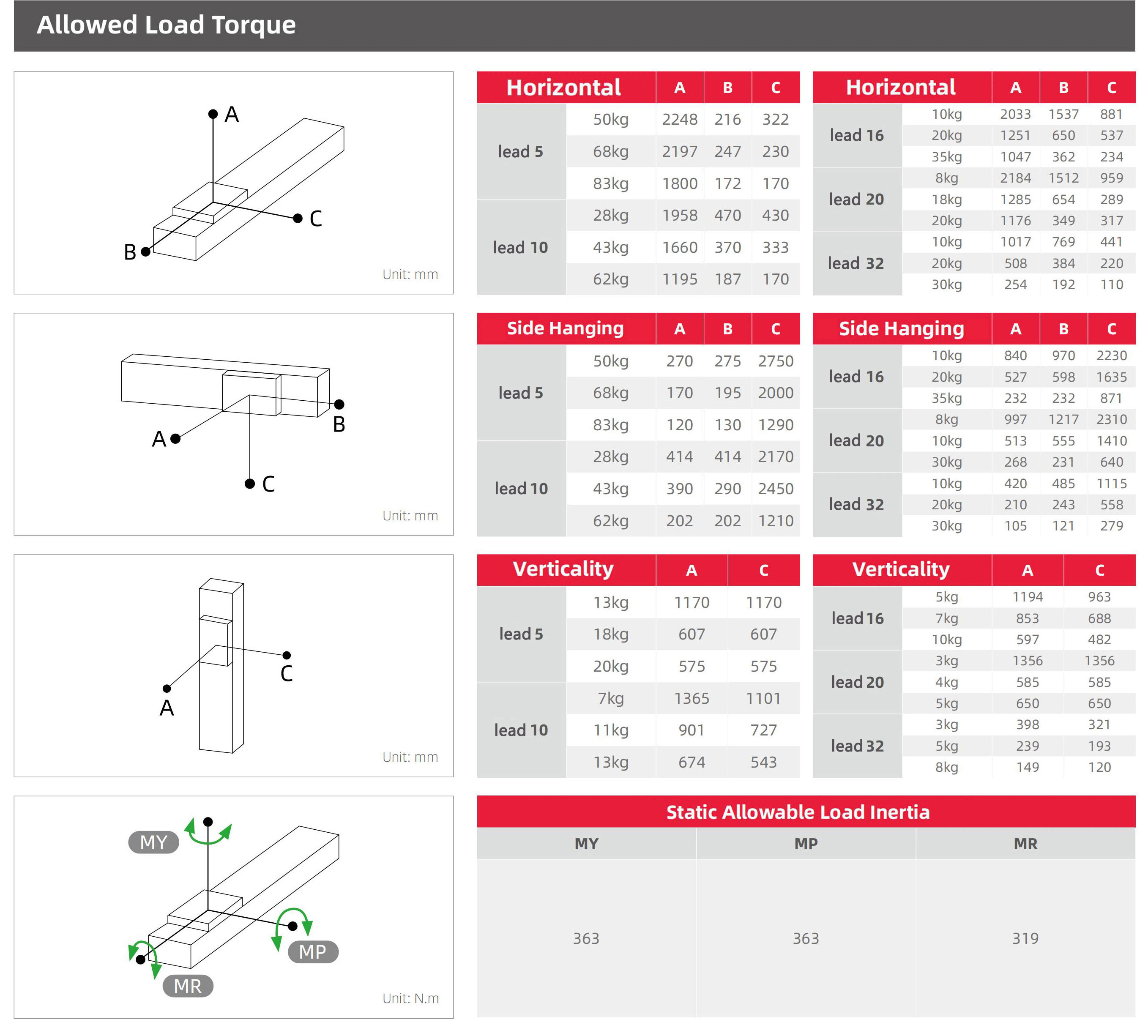

Product Specifications - Performance Parameters




List of compatible servo motors
