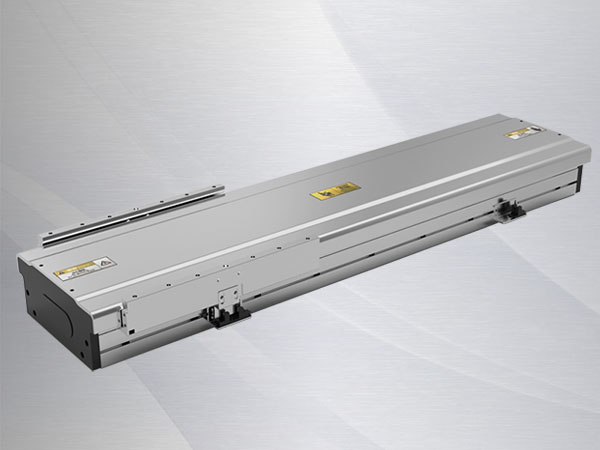

Linear motor modules boast a compact structure, low power consumption, high rapid traverse speed and exceptional acceleration. By directly driving the load, linear motor modules achieve high-precision position control across a full speed range from high to low velocities.
High-Speed Response: Speed up to 5000mm/sec, acceleration up to 10G
Ultra-High Precision: Repeat positioning accuracy of ±0.5μm
High Thrust Output: Maximum thrust up to 3186N
Flexible Configuration: Freely combinable into XY cross tables, gantry systems or custom motion platforms
Unlimited Stroke Extension: Supports multi-mover operation for extended travel ranges
Thrust is a core parameter of linear motor modules, generally categorized into continuous thrust and peak thrust (maximum thrust). Peak thrust is determined by the mass of the moving load and the maximum acceleration, analogous to the rated torque and peak torque of servo motors — these are critical specifications for linear motor model selection.
Thrust = Total Mass × Acceleration + Friction Force + External Stress
Acceleration force, constant-speed driving force, deceleration force, holding force, acceleration duration, constant-speed duration, deceleration duration and dwell time.
The peak thrust of a linear motor is defined by the safety limits of its electromagnetic design.
Dongguan Jiayi Intelligent Equipment Co., Ltd. is a one-stop solution provider and manufacturer dedicated to linear motion systems. We integrate R&D, production and sales of linear modules, linear motors, DD motors, variable-pitch modules, electric slides, multi-axis precision platforms, customized platform solutions, and module accessories including ball screws and linear guides.
We hold a prestigious reputation in the market and have established long-term stable partnerships with numerous distributors. Our company is accredited as a National High-Tech Enterprise, "Specialized, Sophisticated, Unique & New" Enterprise, Above-Scale Industrial Enterprise, and Dongguan Collaborative Multiplication Enterprise, with 38 national patented technologies. We obtained ISO9001 Quality Management System Certification in 2019.
Covering a 10,000 ㎡ factory space, we employ over 120 staff members, including more than 20 senior R&D and design engineers. Equipped with American API precision measuring instruments and other advanced testing equipment, we have built long-term strategic industry-university-research collaborations with multiple universities and research institutes. We continuously introduce and absorb cutting-edge automation technologies from Germany and Japan to upgrade our manufacturing processes.
